Description
★FCC&CE
FCC certificate and programming guide under the Technical Specification; Baofeng UV-10R ham radio are authorized by Baofeng;
【Certificate Number:T.2020.12.0012】
【 ICE:62368-1:2014(second Edition)】
★Long Range Communication

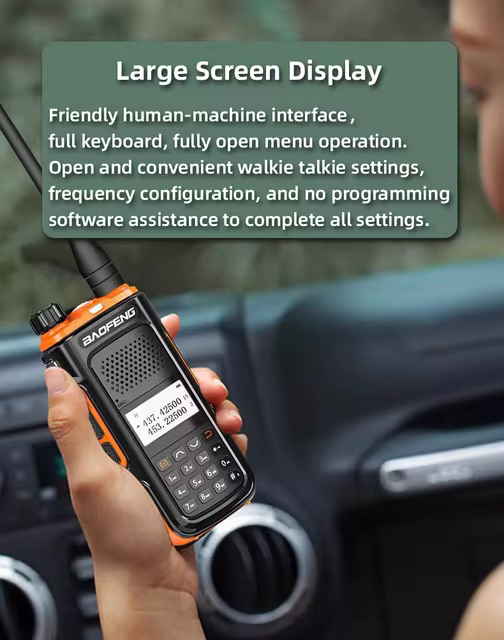

Professional Ham Radio: Frequency range:VHF:136-174MHz(RX/TX),UHF:400-520MHz(RX/TX)，Up to 128 channels. Dual-band handheld transceiver with display function menu on the display “LCD”. This solid 10W Power radio can reach further and receives strong signals.
★Power Source
Rechargeable Li-ion Battery packs:Equipped with 1pack Original 8000mAh Battery +Battery Charger ,Support 24 hours continual communication.
★VOX – Hands Free Function
Hands-free function,can clearly transmit voice in noisy situation, support you to talk in any where, take it easy with you.
★Slight And Portable
Equipped with type C charging port, LED flashlight,Charge LED：transmission(red)/reception(green);Standard size flexible use in the band.
Product Description:
Model
UV-10R
Dual band /dual display / dual standby
A/B band independent operation(UV UU VV)
128 groups channels storage
Shortcut menu operation mode
Memory channels scan
Time/ Carrier / Search Operation
Emergency Alarm
Indicator and flashlight Flashing Together
Time-out Timer (TOT)
15-600/Stepping 15
Squelch Level(SQL)
0-9 Grade
PTT & ANIID
ON OFF/0-9;A-F
Voice companding
50 CTCSS/104 DCS
High/Low TX power selectable
Busy channel lock-out(BCLO)
DTMF ST function
DT+ANI/ANI-ST/DT-ST/OFF

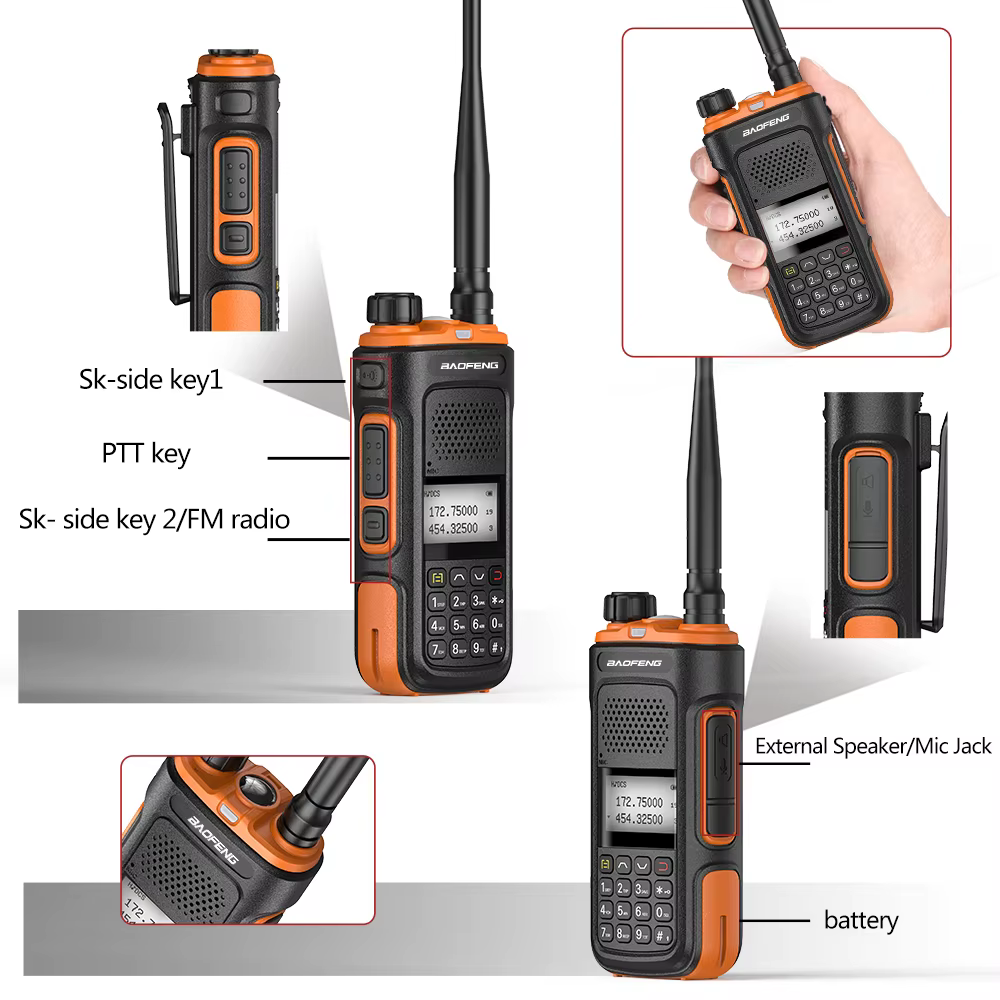

Dual PTT
Yes
Wide/Narrow Band(25kHz/12.5kHz)
Yes
VOX function
Yes
OFF/1-10
1750HZ Tone
Yes
Busy lockout function
Yes
Scanning function
Yes
Monitor function
Yes
Time-out Timer (TOT) function
Yes
LCD display
Yes
Dual display
Yes
Dual Standby
Yes
Battery voltage display function
Yes
Channel name display and editing functions
Yes
Signal strength indicator
Yes
Keypad lock function
Yes
Built-in Led torch
Yes
FM radio
Yes
65-108MHZ(Reception)
Emergency alarm function
Yes
Low battery alarm
Yes
Power saving function
Yes
High/Low TX power selectable
Yes
10W
ROGER SET
Yes
FULL/MGS
Chinese and English voice prompt
Yes
Wire clone function
Yes
PC software programmable
Yes
General Specifications
Frequency stability
±2.5ppm
Frequency Step
2.5/5/6.25/10/12.5/20/25KHz
Antenna Impedance
50ohm
Working temperature
-20~+50°C
Rated Voltage
7.4V DC±10%
Output power
<= 10W
Battery type
Li-ion battery
Battery capacity
8000mAh
Headphone jack type
2 Pin Kenwood Plug
Antenna Type
SMA-(Male)
Mode Of Operation
Simplex Or Semi-duplex
Weight
130g(approximate)
Dimension(LXWXH)
130X55X30mm(Not Antenna)
Transmitter
Type Of Modulation
16køF3E / 11køF3E
Max frequency deviation
< 5kHz(Wide)/< 2.5kHz(Narrow)
Emissioncurrent
<= 1.5A(5W)
CTCSS / DCS
0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow)
Reception
Sensitivity
-122dBm(12dB SINAD)
Audio Power
1W
Intermediation Distortion
<10%
Inter modulation
>=65Db/>=60dB
Spurious response
65dB
Adjacent channel selectivity( wide/narrow)
<-65dB(Wide) <-60dB(Narrow)
Receiving Current
<=380mA
Package include:
1 X Portable radio
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X Headset
1 X User’s manual
